OUR UNIQUE MANUAL POLISHING MACHINE FOR STONE

The definition, characteristics, related parameters and advantages of MS-2600 Manual Polishing Machine

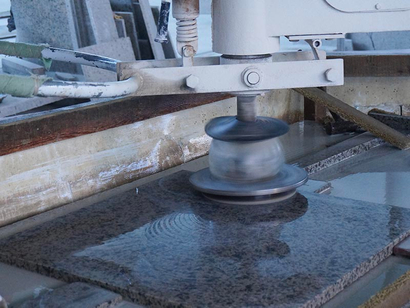

The MS-2600 Manual Polishing Machine is a equipment that workers move the machine head to grind and polish the stone. It mainly fits for the surface grinding and polishing of granite, marble and artificial stone. At the same time, it can reach a polishing size of 2600X900MM.

The MS-2600 Manual Polishing Machine is traditional model for grinding and polishing and has extensive advantages with continuous improvement.
1. Less investment, less land occupation, saving money and workshops.
2. Easy operation : just place the stone in the grinding range with no clamping, switch on the motor, move the handrail, you can easily move the grinding head to process on the stone.
3. Flexible and convenient use: It suit the slabs with irregular size, dressed stone, columns, tombstones and mosaic.
4. Stable performance, convenient maintenance, safe and reliable after continuous improvement for more than fifty years.


MORE POLISHING MACHINE

HOW TO USE MANUAL POLISHING MACHINE FOR STONE?​​​​​​​

APPLICATIONS

Types of stone that MS-2600 Manual Polishing Machine polish:
Granite, marble, artificial stone
Mainly in the stone industry, the polishing of plates and the polishing of special-shaped surfaces
We have more high-quality stone cutting machine and
stone drilling machine used in stone cutting and drilling processing

CHOOSE OUR MANUAL POLISHING MACHINE FOR STONE

PRECAUTIONS FOR USING MANUAL STONE

POLISHING MACHINE

The grinding head shakes during work

Analyze the reasons:

(1) After the machine is used for a certain period of time, there is a gap between the lifting screw and the lifting screw nut , causing swim arm tilt forward. When working, the friction force between the human strength and slabs causes the machine to slightly shake.

Solution: Replace the lifting screwr nut

(2) After the machine is used for a certain period of time, the elasticity in spiral spring weaken,  the pressure is not enough so the machine shake slightly.

Solution: spiral spring

(3) After the machine has been used for a certain period of time, the spline sleeve and the spline shaft wear out so cause a gap , causing the machine to shake slightly.

Solution: spline sleeve and spline shaft

Getiing stuck when grinding head is lifting at work

Analyze the reasons:

The abrasion between column and the slide comes a gap, which causes the swing arm tilt forward. Then the column lifting screw is affected by diagonal pulling force, and get stuck in lifting.

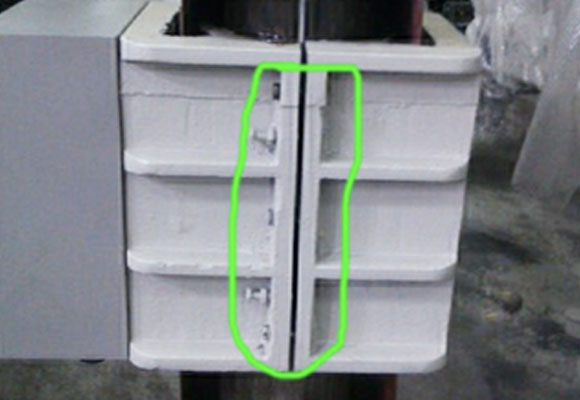

Solution: adjust the gap of slide. Turn the adjusing screws showed in the following picture to adjust the gap of slide.





OTHER SERIES OF PRODUCTS WE OWN​​​​​​​


  • DIAMOND SAW BLADE
  • DIAMOND SEGMENT
  • ABRASIVES FOR STONE
  • DIAMOND WIRE SAW
  • DIAMOND DRILLING TOOLS
  • STONE POLISHING TOOLS

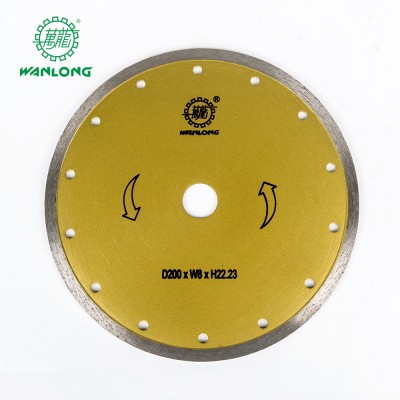

DIAMOND SAW BLADE
