QZQ-1600 Single Column Auto Cutting Machine:
This machine combines advantages of several types of stone cutting machines. Single column supporting structure, and two-stage variable speed gear for headstock to make cutting more smoothly. Its main advantages are cutting automatically according to pre-set cutting depth and slicing thickness, low energy comsuption, high cutting efficiency, easy operation and maintenance.
Configuration:

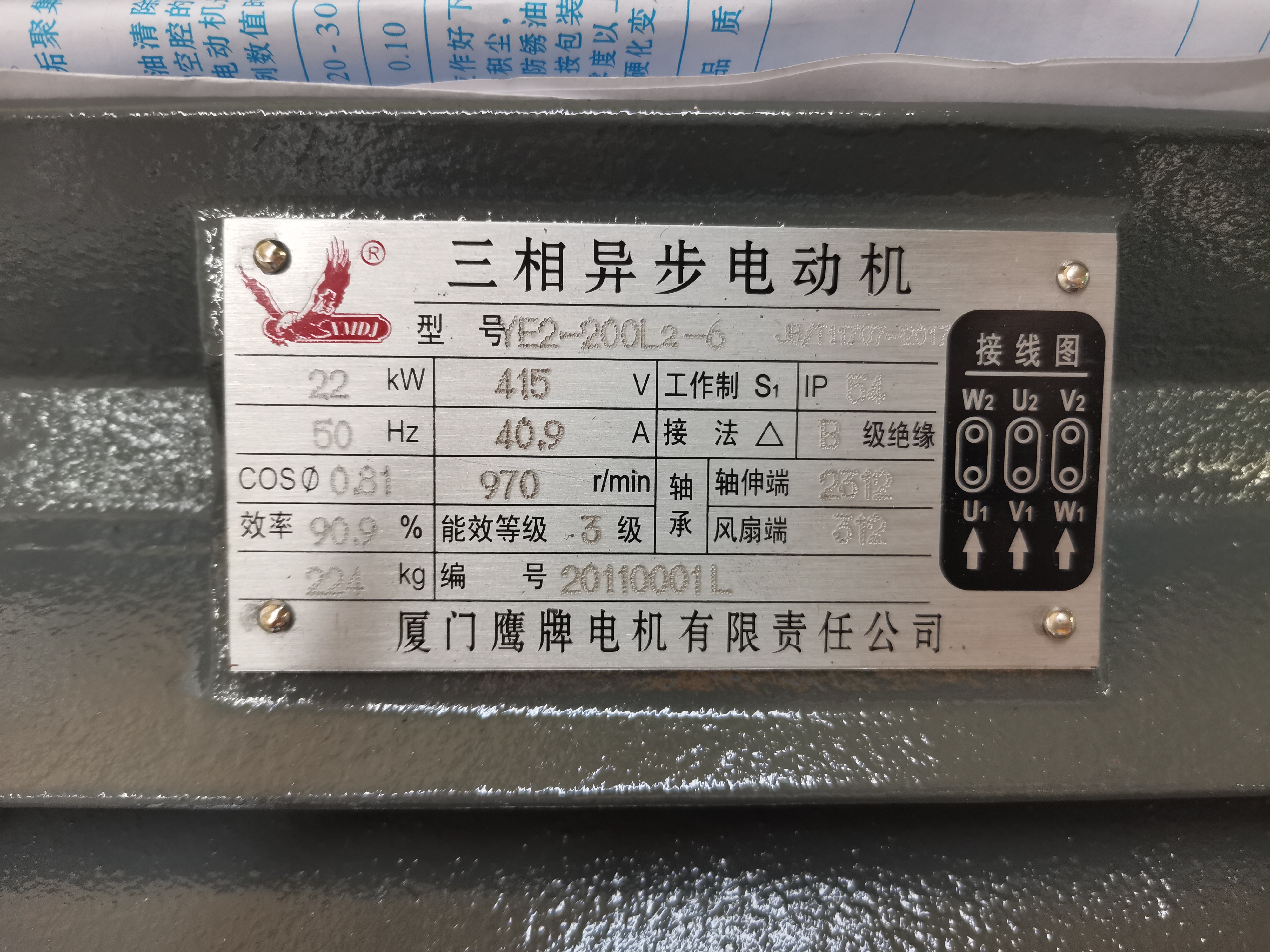

1. SIEMENS or indigenous main motor, 22KW.

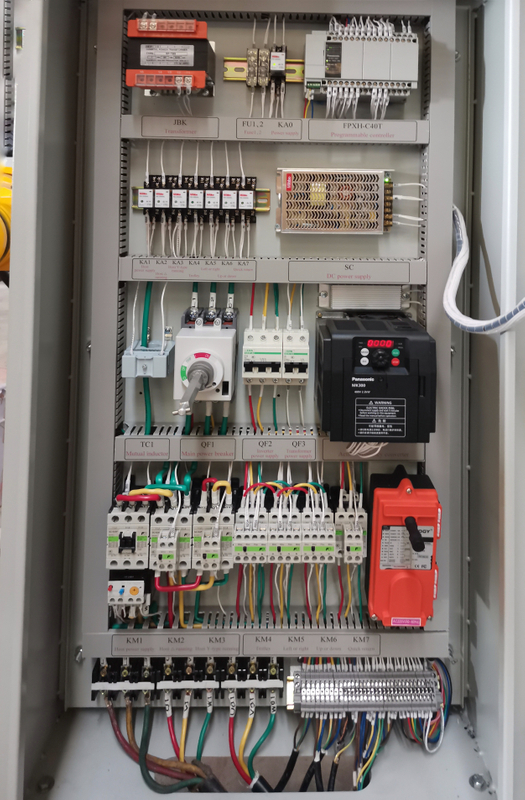

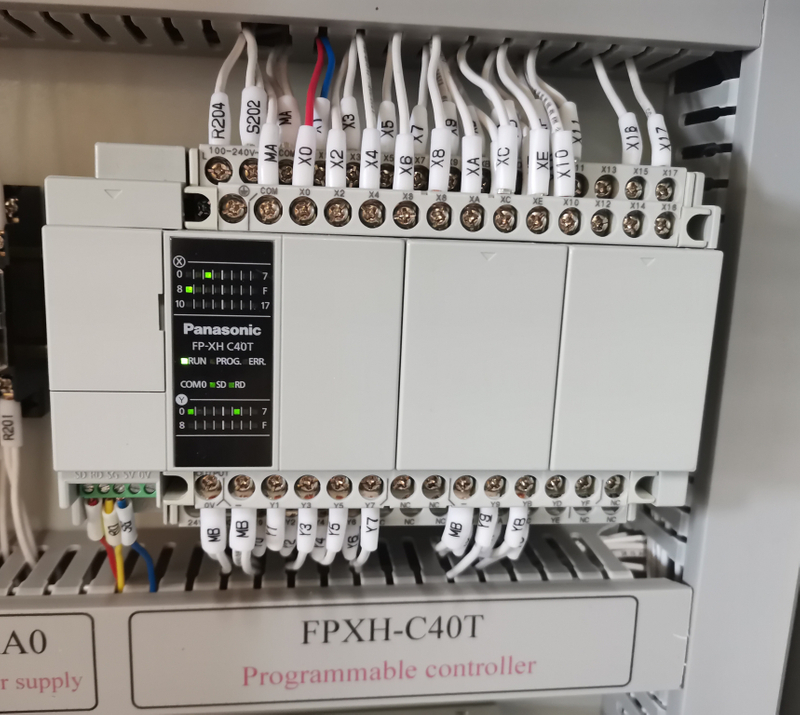

2. PANASONIC PLC, FUJI contactor
Technical Parameters
1. QZQ-1600/1800
Single Column Auto Cutting Machine
Model | Unit | QZQ-1600 | QZQ-1800 |
Max.diameter of blade | Mm | Φ1600 | Φ1800 |
Max.No.of blades | PCS | 2 | 1 |
Recommended Blade Combination | mm | Φ1600+Φ940 | Φ1800 |
Main motor power | KW | 22 | 22 |
General power | kw | 25.15 | 25.15 |
Max processing sizes | mm | 3000×1200×650 | 3000×1200×750 |
Max lifting stroke | mm | 900 | 900 |
Overall dimensions(LxWxH) | mm | 6000×2900×3300 | 6000×2900×3300 |
Water consumption | m³/h | 6 | 6 |
Total weight | Kg | 3000 | 3000 |
2. Relevant Segments
Steel core (mm) | Segment size (mm) | Steel core (mm) | Segment size (mm) | Steel core (mm) | Segment size (mm) |
5.5 | 24×7.4/6.6×15 | 6.5 | 24×8.4/7.6×15 | 7.2 | 24×9.2/8.4×15 |
This machine combines advantages of several types of stone cutting machines.Single column supporting structure, and two-stage variable speed gear for headstock to make cutting more smoothly. Its main advantages are cutting automatically according to pre-set cutting depth and slicing thickness, low energy comsuption, high cutting efficiency, easy operation and maintenance.

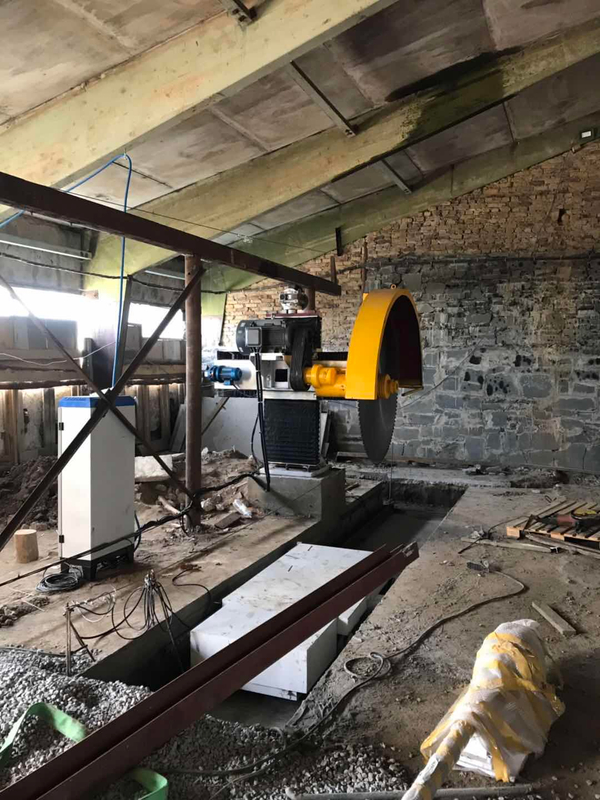

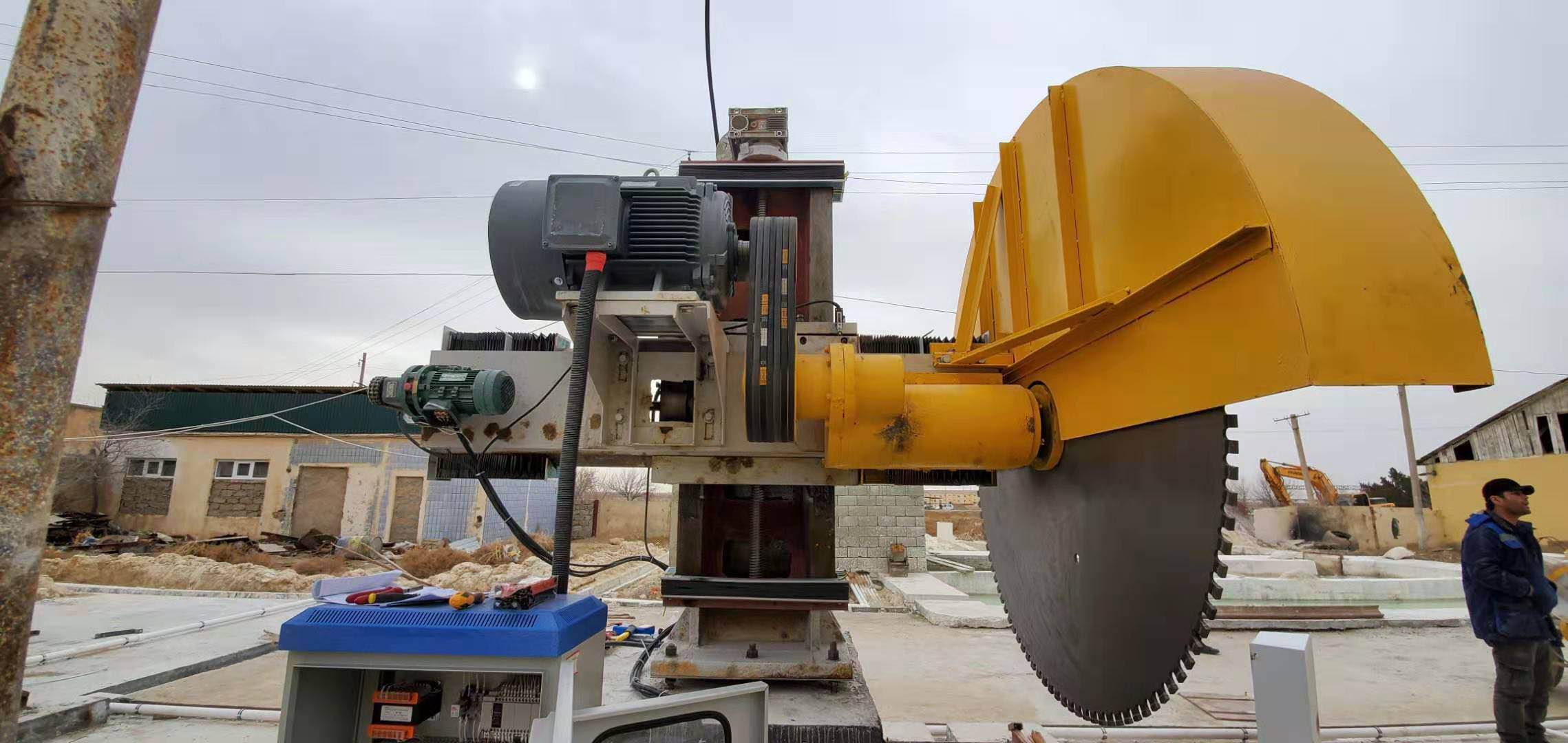

Wanlong QZQ-1600 Machine Working at Customer's Factory
The stone cutting machine consists of a cutting knife set, a stone conveying table, a positioning guide and a frame. The stone cutting machine is made of iron, suitable for dry cutting, wet cutting of various types of stone, building materials, ceramic tiles, granite, marble, cement slab, red brick, refractory Bricks, etc. are essential tools for home decoration.
The stone cutting machine can cut stones at different depths, and can process stones less than 1m3, which can turn waste into treasure, greatly save stone resources, and also help protect the environment. Various types of stones can be machined Cutting processing, high processing efficiency, combined with the effective use of small stones, make the production cost lower.
In the process of mechanical processing, the common methods of plate cutting include manual cutting, semi-automatic cutting machine cutting and CNC cutting machine cutting. Manual cutting is flexible and convenient, but manual cutting has poor quality, large dimensional errors, large material waste, large follow-up processing workload, harsh working conditions and low production efficiency. Among the semi-automatic cutting machines, the profiling cutting machine has better quality of cutting workpieces. Because it uses a cutting die, it is not suitable for single-piece, small-batch and large-scale cutting. Although other types of semi-automatic cutting machines reduce the labor intensity of workers, their functions are simple and are only suitable for cutting some more regular-shaped parts. Compared with manual and semi-automatic cutting methods, CNC cutting can effectively improve the efficiency and cutting quality of plate cutting, and reduce the labor intensity of the operator. In some small and medium-sized enterprises in our country, it is more common to use manual cutting and semi-automatic cutting in some large enterprises.
Pre-Sales Service
1. Inquiry and consulting support.
2. View our Factory.
3. Visiting Local stone factories to see our machine performance
4. Visiting Local stone factories to see our machine performance
5. After-Sales Service
Dispatching Technician to Overseas for Machine installation and Traning how to operate the machine.
6. Warantee 12 months
Packaging Shipping
Package depends on the quanity and the product feature
sea worthy packaging, fully wrapped with waterproof membrane and air bubbles. 1 set with one 20ft container(20GP) or LCL
EXHIBITION
Customer Oriented,Honest and Highly Responsible Team
SALES NETWORK
1. South Asia：India, Pakistan, Bengal, Sri lanka, etc
2. South East Asia：Indonesia, Vietnam, Thailand
3. Mid East：Iran, Saudi Arab, UAE, Syria, Lebanon, Israel etc
4. Africa：Egypt, Nigeria, Kenya, Ethiopia, South Africa
5. America：USA, Canada, Mexico, Brazil, Venezuela, Chile, etc
6. Oceania：Australia, New zealand
7. Europe：Ukraine, Poland, Bulgaria, Romania, Czech, Yugoslavia,Latvia,Lithuania,Sweden, Finland, Danmark, Spain, Greece, Turkey
Certification
Company Introduction
Diamond tools: Wanlong's mission is to make no stone hard to cut in the world, to help customer save production costs. More than 20 years in the line of diamond tools industry, Wanlong’s technological innovation improves the cutting efficiency, and save the cost for end-users.
Stone Industry: Wanlong developed Aluminum Plastic Laminated Panel, Honeycomb Laminated Panel, Ceramic Thin Marble Panel, Fiberglass Thin Granite Panel, Fire Proof Thin Granite Panel and other new stone products. Not only save stone (3-5mm super thin stone, the original 1-3cm reduced to 3-5mm), but also let stone products have properties (impact resistance, high-temperature resistant, fire resistant, light weight, large single size 140x280cm ), expanding the application of the stone (high-rise building interior wall decoration, airplane and yacht interiors).
Stone Machinery: Wanlong mechanical's mission is to provide customers with advanced technology solutions for efficient tools production. 26 years’ practical experience in stone machinery industry contributes to rich experience and Technological advantage of diamond tools. Wanlong machinery will fit the needs of customers with more sophisticated services to fulfill the mission.
