Configurations:
1. SIEMENS main motor with stronger seats.
2. PANASONIC PLC and inverter.
3. Strong cast iron HT200.
4. Touch sensitive Panel Easy for worker to operate.
5. 8-9 sqm per hour for medium hard marble with 20-30mm thicknesss.
Technical Parameters

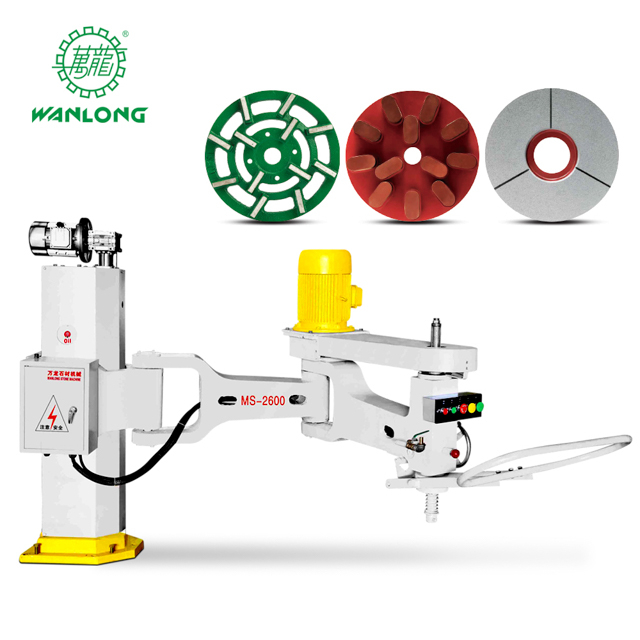

Model | Unit | MS-2600 | MS-3000 |
Main motor power | KW
| 4.5/5.5 | 4.5/5.5 |
Gyro radius | mm | 2600 | 3000 |
Range of vertical stroke | mm | 0-800 | 0-800 |
Grinding wheel diameter | mm | 220 | 220 |
Max.polishing size | mm | 2600x900 | 3000x1200 |
Overall dimensions（L×W×H） | mm | 3500×650×1700 | 3800×650×1700 |
Water consumption | m3/h | 3 | 3 |
Approximate weight | kg | 850 | 900 |

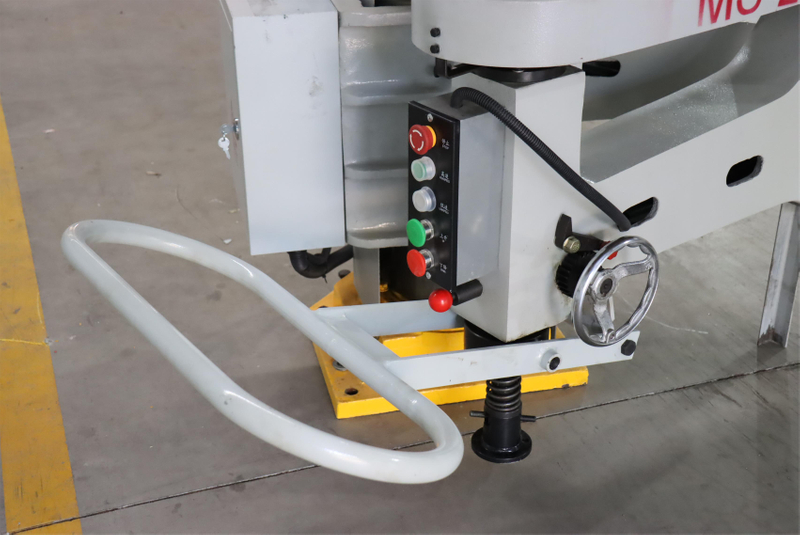

Detail Display
Arc table(optional)
Pneumatic lifting system(optional)
PART OF WANLONG Stone Machinery Customers(Workshop)

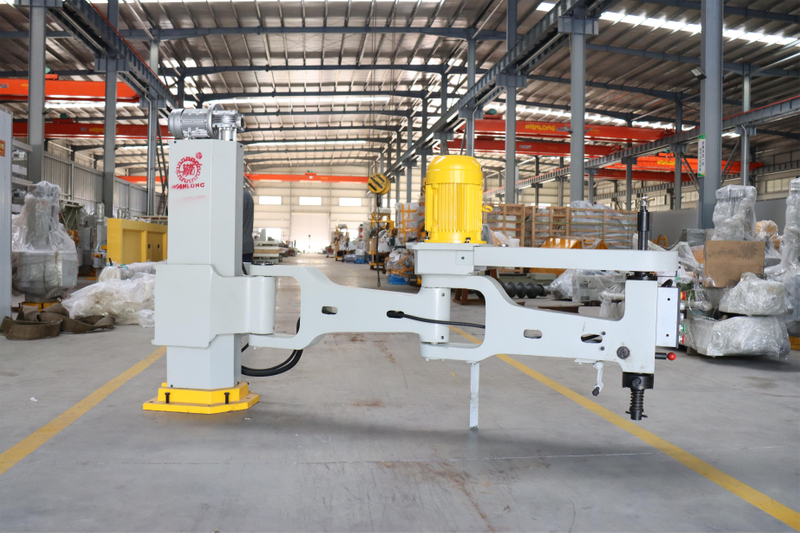

The machine uses round column as its guide slip surface for steady automatic ups and downs.Two optional
main drive motors(single speed and dual speeds) are upon the clients' choice. It is applicable to surface
grinding and polishing of tombstones,slabs and mosaic which needs to change the thickness frequently.
The workable for grinding interior/exterior arcs is available upon customer's request.
Pre-Sales Service
1. Inquiry and consulting support.
2. View our Factory.
3. Visiting Local stone factories to see our machine performance
4. Visiting Local stone factories to see our machine performance
5. After-Sales Service
Dispatching Technician to Overseas for Machine installation and Traning how to operate the machine.
6. Warantee 12 months
Packaging Shipping
Package depends on the quanity and the product feature
sea worthy packaging, fully wrapped with waterproof membrane and air bubbles. 1 set with one 20ft container(20GP) or LCL
EXHIBITION
Customer Oriented,Honest and Highly Responsible Team
SALES NETWORK
1. South Asia：India, Pakistan, Bengal, Sri lanka, etc
2. South East Asia：Indonesia, Vietnam, Thailand
3. Mid East：Iran, Saudi Arab, UAE, Syria, Lebanon, Israel etc
4. Africa：Egypt, Nigeria, Kenya, Ethiopia, South Africa
5. America：USA, Canada, Mexico, Brazil, Venezuela, Chile, etc
6. Oceania：Australia, New zealand
7. Europe：Ukraine, Poland, Bulgaria, Romania, Czech, Yugoslavia,Latvia,Lithuania,Sweden, Finland, Danmark, Spain, Greece, Turkey
Certification
Company Introduction
Diamond tools: Wanlong's mission is to make no stone hard to cut in the world, to help customer save production costs. More than 20 years in the line of diamond tools industry, Wanlong’s technological innovation improves the cutting efficiency, and save the cost for end-users.
Stone Industry: Wanlong developed Aluminum Plastic Laminated Panel, Honeycomb Laminated Panel, Ceramic Thin Marble Panel, Fiberglass Thin Granite Panel, Fire Proof Thin Granite Panel and other new stone products. Not only save stone (3-5mm super thin stone, the original 1-3cm reduced to 3-5mm), but also let stone products have properties (impact resistance, high-temperature resistant, fire resistant, light weight, large single size 140x280cm ), expanding the application of the stone (high-rise building interior wall decoration, airplane and yacht interiors).
Stone Machinery: Wanlong mechanical's mission is to provide customers with advanced technology solutions for efficient tools production. 26 years’ practical experience in stone machinery industry contributes to rich experience and Technological advantage of diamond tools. Wanlong machinery will fit the needs of customers with more sophisticated services to fulfill the mission.
