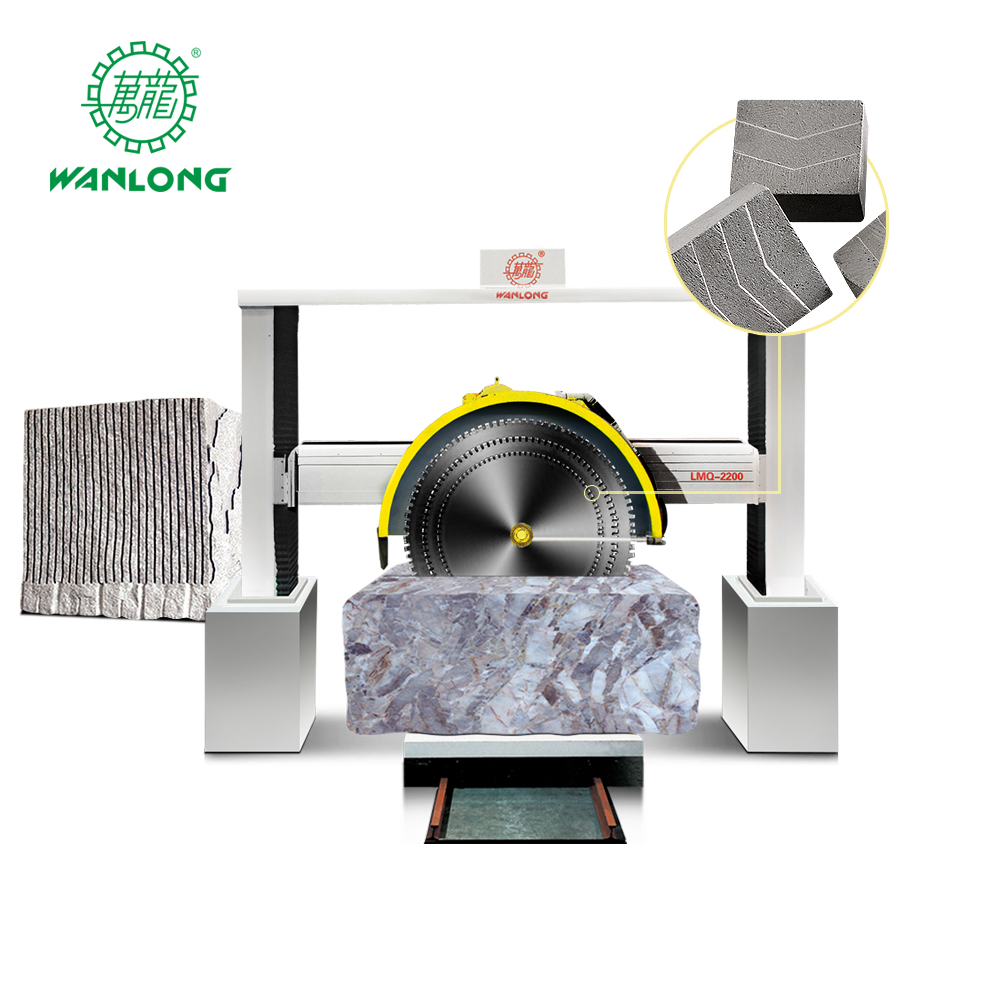

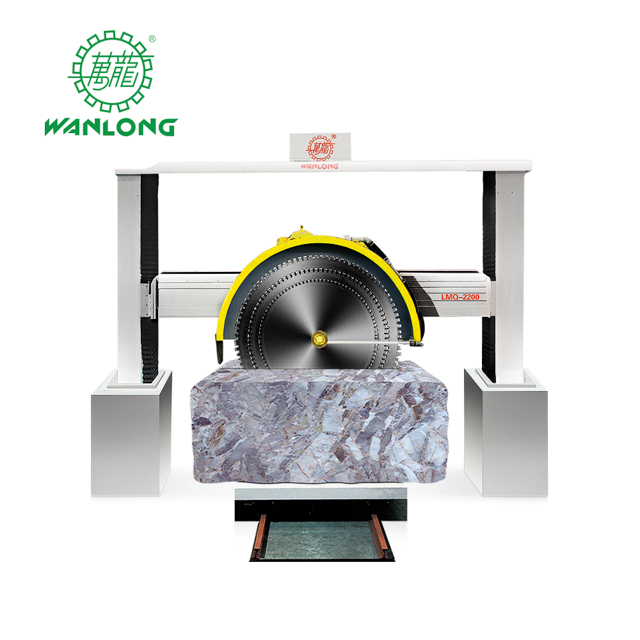

LMQ-2200/2500 Gantry Block Cutting Machine:
Wanlong LMQ Block Cutter is CE Certified Stone Block Cutting Machine with high production capacity and precision!
Featured Advantages of LMQ Block Cutter:
1) Harden Screw Rod Guided for Blade Vertical Movement and for High Cutting Precision;

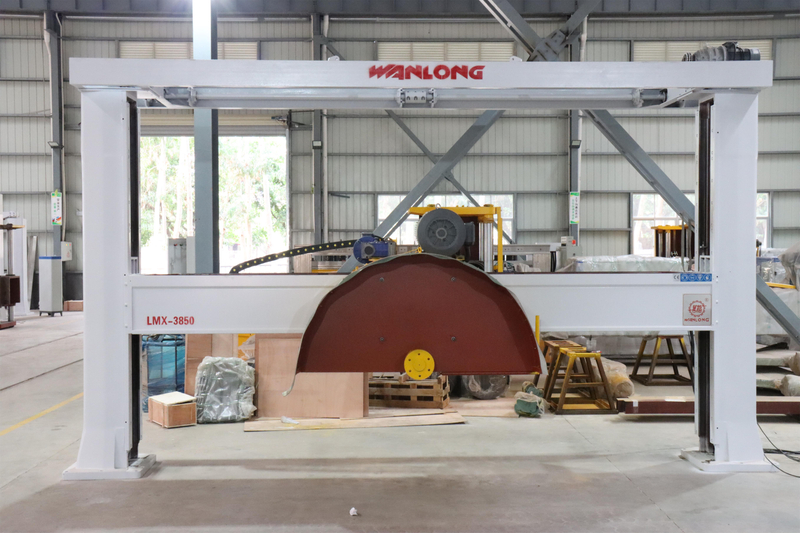

2) Gantry Structure with Cast Iron Crossbeam and Side Columns for durable working efficiency;
3) Great Cutting Capacity of 3400L x 2000W x 1350H but Small Area Taken for Machine Installation;
4) European & Japanese Components for Prolong Machine Life, Working Precision and Easy to Operate & Maintain;
5) Block Movement Driven by Standard Single-Layer Trolley and Double-Layer Rotable Trolley upon Customer Request.
6) It's elevation of blade is driven by crossbeam to increase the cutting flatness and processing scope. The blade's sliding speed on the crossbeam is adjustable.
Technical Parameters
LMQ-2200/2500
Gantry Block Cutting Machine
Model | Unit | LMQ-2200 | LMQ-2500 |
Max. diameter of blade | mm | Φ2200 | Φ2500 |
Max. No. of blades | pc | 3 | 1 |
Recommended Blade Combination | mm | Φ2200 Φ1600 Φ940 | Φ2500 |
Main motor power | KW | 30 | 30 |
Table dimensions（L×W） | mm | 2000×2000 | 2000×2000 |
Max. cutting size (L×W×H) | mm | 3000×2000×950 | 3000×2000×1100 |
Overall dimensions（L×W×H） | mm | 6600×6000×4800 | 6600×6000×4800 |
Water consumption | m3/h | 10 | 10 |
Approximate weight | kg | 9000 | 9000 |
The elevation of blade is driven by crossbeam to increase the cutting flatness and processing scope. Sliding speed of blade on the crossbeam is adjustable.
LMQ-3000
Gantry Block Cutting Machine
Model | Unit | LXQ-3000 |
Max. diameter of blade | mm | Φ3000 |
Max. No. of blades | pc | 1 |
Main motor power | KW | 37 |
Table dimensions（L×W） | mm | 2000×2000 |
Max. cutting size (L×W×H) | mm | 3400×2000×1350 |
Overall dimensions（L×W×H） | mm | 7000×4700×6000 |
Water consumption | m3/h | 10 |
Approximate weight | kg | 12000 |
Detail Display
The main electrical components are used internationally renown
1、Strong CastingStrong Casting Iron crossbeam and vertical beam to avoid distortion after long- term use
2、Frequency ConvertersPLC controlled system/ frequency converters- Panasonnic;

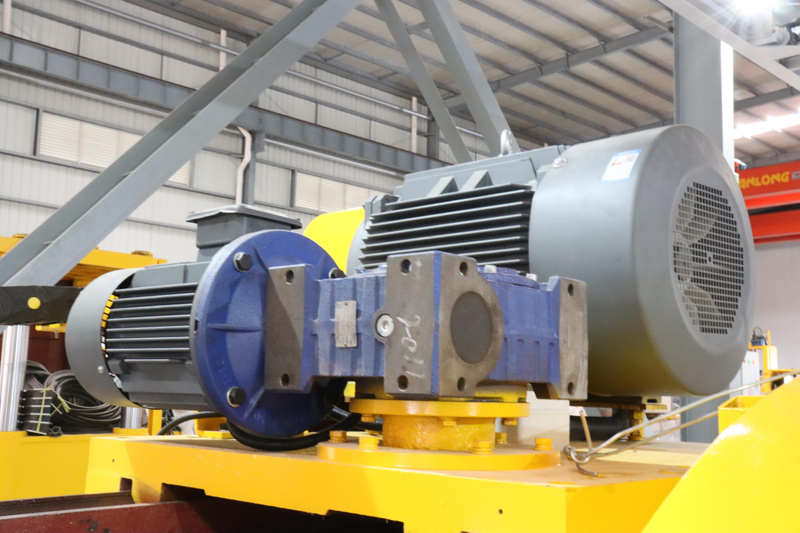

3、Main Motormain motor - Siemens
4、ContactorFujiOptional Motor Power: 37kw, 45kw and 55kw are available

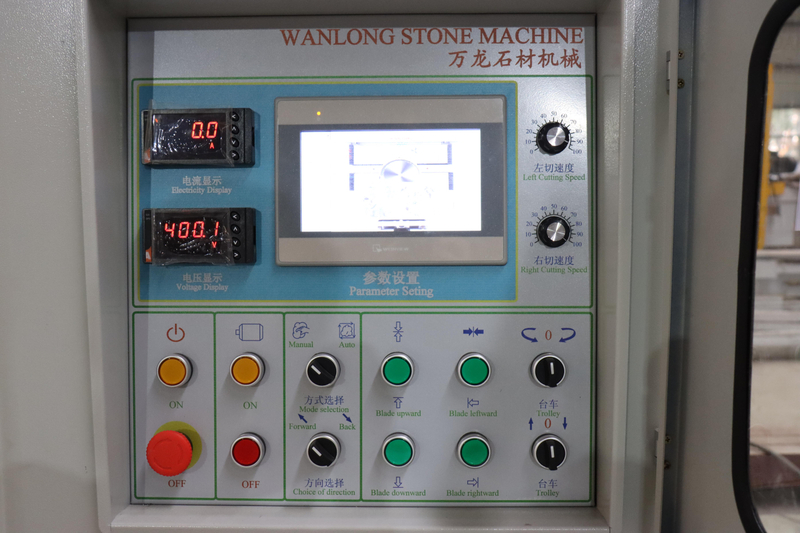

5、Easy OperatingSimple Graphical Interface with Touch Screen, easy for understanding and operating
PART OF WANLONG Stone Machinery Customers(Workshop)
Pre-Sales Service
1. Inquiry and consulting support.
2. View our Factory.
3. Visiting Local stone factories to see our machine performance
4. Visiting Local stone factories to see our machine performance
5. After-Sales Service
Dispatching Technician to Overseas for Machine installation and Traning how to operate the machine.
6. Warantee 12 months
Packaging Shipping
Package depends on the quanity and the product feature
sea worthy packaging, fully wrapped with waterproof membrane and air bubbles. 1 set with one 20ft container(20GP) or LCL
EXHIBITION
Customer Oriented,Honest and Highly Responsible Team
SALES NETWORK
1. South Asia：India, Pakistan, Bengal, Sri lanka, etc
2. South East Asia：Indonesia, Vietnam, Thailand
3. Mid East：Iran, Saudi Arab, UAE, Syria, Lebanon, Israel etc
4. Africa：Egypt, Nigeria, Kenya, Ethiopia, South Africa
5. America：USA, Canada, Mexico, Brazil, Venezuela, Chile, etc
6. Oceania：Australia, New zealand
7. Europe：Ukraine, Poland, Bulgaria, Romania, Czech, Yugoslavia,Latvia,Lithuania,Sweden, Finland, Danmark, Spain, Greece, Turkey
Certification
Company Introduction
Diamond tools: Wanlong's mission is to make no stone hard to cut in the world, to help customer save production costs. More than 20 years in the line of diamond tools industry, Wanlong’s technological innovation improves the cutting efficiency, and save the cost for end-users.
Stone Industry: Wanlong developed Aluminum Plastic Laminated Panel, Honeycomb Laminated Panel, Ceramic Thin Marble Panel, Fiberglass Thin Granite Panel, Fire Proof Thin Granite Panel and other new stone products. Not only save stone (3-5mm super thin stone, the original 1-3cm reduced to 3-5mm), but also let stone products have properties (impact resistance, high-temperature resistant, fire resistant, light weight, large single size 140x280cm ), expanding the application of the stone (high-rise building interior wall decoration, airplane and yacht interiors).
Stone Machinery: Wanlong mechanical's mission is to provide customers with advanced technology solutions for efficient tools production. 26 years’ practical experience in stone machinery industry contributes to rich experience and Technological advantage of diamond tools. Wanlong machinery will fit the needs of customers with more sophisticated services to fulfill the mission.
