| Quantity: | |
|---|---|
Make cutting easier!
Good cutting result: smooth cutting, flat surface and even size.
Product Sepcification

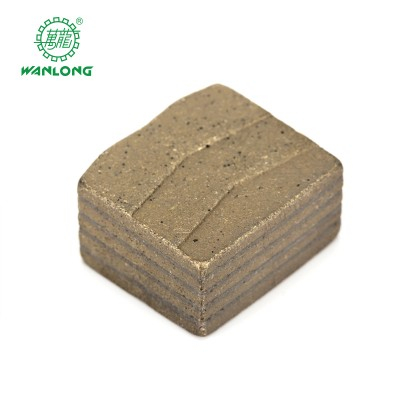

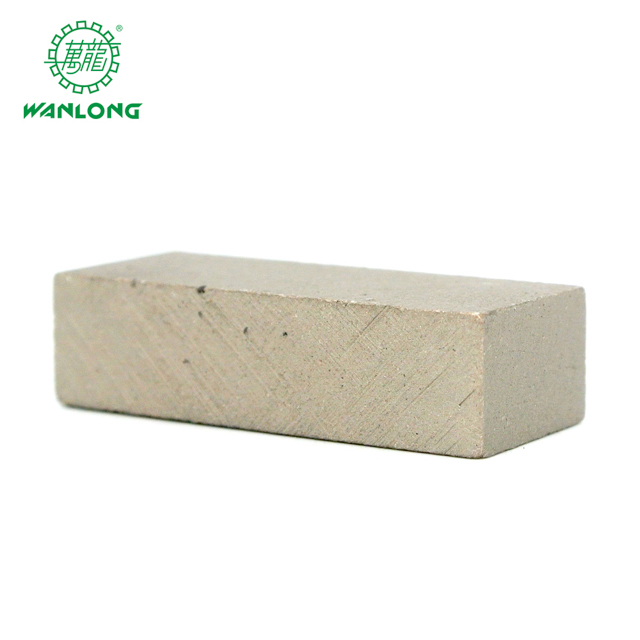

Gangsaw Segment
Application： Marble, Limestone, Travertine
| Steel Blank Thickness (mm) | Segment Size (mm) | No. of segment / disc | Hardness of Marble | Feeding Speed (cm/h) | Lifespan (Worktable) |
| 3.5 | 20x5.4/4.8x10 | 27~32 | Soft | 25~30 | 150 |
| Medium Hard | 20~25 | 100~120 | |||
| Hard | 15~20 | 60~70 | |||
| 3.0 | 20x5.0/4.5x10 | 27~32 | Soft | 25~30 | 150 |
| Medium Hard | 20~25 | 100~120 | |||
| Hard | 15~20 | 60~70 | |||
| 2.5 | 20x4.5/4.0x10 | 27~32 | Soft | 20~24 | 150 |
| Medium Hard | 16~20 | 100~120 | |||
| Hard | 11~16 | 60~70 |
Remarks:
1. The above-mentioned gangsaw segments are all with pure cobalt bond.
Low-cobalt content fomula available upon request.
2. Gangsaw segment with 8mm height available upon request.
3. The Unit of Lifespan "Worktable" mentioned above refers to the worktable of gangsaw machine which can load
max. block size 3x3x2m. For example, if lifespan is 100 worktable, it means the segment can cut max.100pcs
of block size 3x3x2m.
4. Please contact our sales via email / messengers for other specifications required.
Quick smooth cutting
The blade has good sharpness and high efficiency at the process of cutting
Field Operation
Consistent Quality Control:
1. Raw material
have advanced device for diamond, powder ete inspection;
2. Finshed product
All produced product has been inspetion and approved before shipment.
3. Production
production procedure been strictly controlled by quality controlled department;
Any quality related problem that we are care and will solved for client.
Packaging & Shipping
Packge depends on the quanity and the product feature
1. By air
min. weight 35kgs; freight as per your airport
2. By Express
DHL, UPS, TNT etc. normally less than 35 kgs parcel, freight would be varousas per your country
3. By sea
can be Less than Container Load and Full Container Load; freight is according to the shiping company quoation to your seaport
Fast deliver time: 7- 15 days. To rough idea: most of order lead time is 7 days-10days.
EXHIBITION
Customer Oriented,Honest and Highly Responsible Team
SALES NETWORK
1、South Asia：India, Pakistan, Bengal, Sri lanka, etc2、South East Asia：Indonesia, Vietnam, Thailand3、Mid East：Iran, Saudi Arab, UAE, Syria, Lebanon, Israel etc
4、Africa：Egypt, Nigeria, Kenya, Ethiopia, South Africa5、America：USA, Canada, Mexico, Brazil, Venezuela, Chile, etc6、Oceania：Australia, New zealand
7、Europe：Ukraine, Poland, Bulgaria, Romania, Czech, Yugoslavia,Latvia,Lithuania,Sweden, Finland, Danmark, Spain, Greece, Turkey
Certification
Company Introduction
Manufacture and use of tools make human beings have the chances to get more natural resources and create a brilliant civilization.Wanlong has dedicated to stone cutting and stone application since 1993.Today, a daily average of 100,000 pieces of Wanlong diamond tools are exported around the world. Insisting on technological innovation, we continue to create more efficient and more cost-effective diamond tools. We have developed laminated stone panel.
