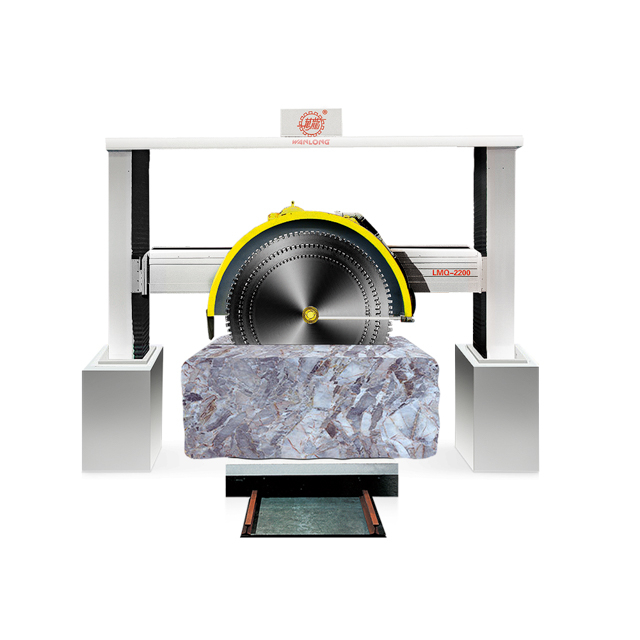

LMQ-2200/2500
WANLONG
Gantry Cutting Machine
The elevation of blade is driven by crossbeam to increase the cutting flatness
Technical Parameters
LMQ-2200/2500
Gantry Cutting Machine
Model | Unit | LMQ-2200 | LMQ-2500 |
Max. diameter of blade | mm | Φ2200 | Φ2500 |
Max. No. of blades | pc | 3 | 1 |
Recommended Blade Combination | mm | Φ2200 Φ1600 Φ940 | Φ2500 |
Main motor power | KW | 30 | 30 |
Table dimensions（L×W） | mm | 2000×2000 | 2000×2000 |
Max. cutting size (L×W×H) | mm | 3000×2000×950 | 3000×2000×1100 |
Overall dimensions（L×W×H） | mm | 6600×6000×4800 | 6600×6000×4800 |
Water consumption | m3/h | 10 | 10 |
Approximate weight | kg | 9000 | 9000 |
The elevation of blade is driven by crossbeam to increase the cutting flatness and processing scope. Sliding speed of blade on the crossbeam is adjustable.
LMQ-3000
Gantry Cutting Machine
Model | Unit | LXQ-3000 |
Max. diameter of blade | mm | Φ3000 |
Max. No. of blades | pc | 1 |
Main motor power | KW | 37 |
Table dimensions（L×W） | mm | 2000×2000 |
Max. cutting size (L×W×H) | mm | 3400×2000×1350 |
Overall dimensions（L×W×H） | mm | 7000×4700×6000 |
Water consumption | m3/h | 10 |
Approximate weight | kg | 12000 |
The elevation of blade is driven by crossbeam to increase the cutting flatness and processing scope. Sliding speed of blade on the crossbeam is adjustable.
Detail Display
The main electrical components are used internationally renown
1、Strong CastingStrong Casting Iron crossbeam and vertical beam to avoid distortion after long- term use
2、Frequency ConvertersPLC controlled system/ frequency converters- Panasonnic;
3、Main Motormain motor - Siemens
4、ContactorFujiOptional Motor Power: 37kw, 45kw and 55kw are available
5、Easy OperatingSimple Graphical Interface with Touch Screen, easy for understanding and operating
PART OF WANLONG Stone Machinery Customers(Workshop)
Packaging Shipping
Packge depends on the quanity and the product feature
sea worthy packaging, fully wrapped with waterproof membrane and air bubbles. 1 set with one 20ft container(20GP) or LCL
EXHIBITION
Customer Oriented,Honest and Highly Responsible Team
Certification
Company Introduction
Manufacture and use of tools make human beings have the chances to get more natural resources and create a brilliant civilization.Wanlong has dedicated to stone cutting and stone application since 1993.Today, a daily average of 100,000 pieces of Wanlong diamond tools are exported around the world. Insisting on technological innovation, we continue to create more efficient and more cost-effective diamond tools. We have developed laminated stone panel.
In the process of mechanical processing, the common methods of plate cutting include manual cutting, semi-automatic cutting machine cutting and CNC cutting machine cutting. Manual cutting is flexible and convenient, but manual cutting has poor quality, large dimensional errors, large material waste, large follow-up processing workload, harsh working conditions and low production efficiency. Among the semi-automatic cutting machines, the profiling cutting machine has better quality of cutting workpieces. Because it uses a cutting die, it is not suitable for single-piece, small-batch and large-scale cutting. Although other types of semi-automatic cutting machines reduce the labor intensity of workers, their functions are simple and are only suitable for cutting some more regular-shaped parts. Compared with manual and semi-automatic cutting methods, CNC cutting can effectively improve the efficiency and cutting quality of plate cutting, and reduce the labor intensity of operators.
