Calibration Wheel
Applicable for automatic calibration machine for quartz slabs.
Technical Parameters
Calibration Wheel
Model | Grit | Thickness（mm） | Hole Size(mm) | Diameter(mm) |
D190Z60 | 24# | 60 | 70 | 190 |
36# | 60 | 70 | 190 | |
46# | 60 | 70 | 190 |
Product display

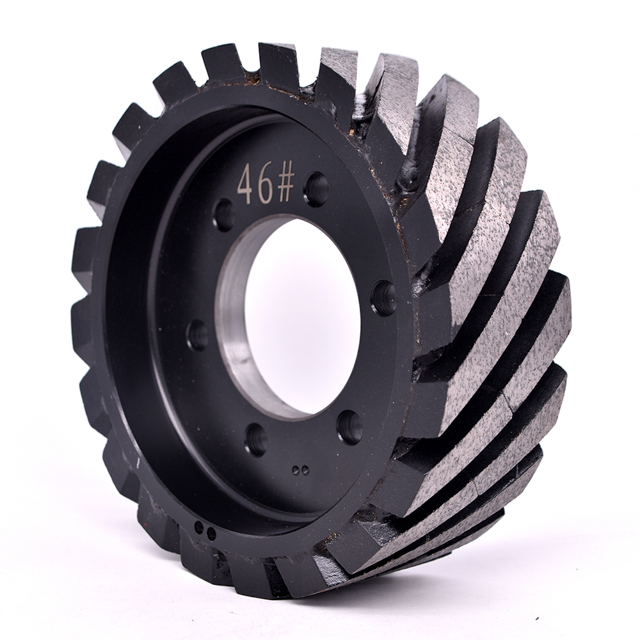

1\Grit/46# 2\Grit/36# 3\Grit/24#
The principle of polishing is mainly reflected in two aspects: the principle of particle grinding; the principle of physical chemistry.
1. Particle grinding: When the abrasive particles change from coarse grinding to fine grinding and polishing, the grinding marks on the stone surface change from coarse to fine to no visible marks, and the surface becomes smooth, flat and delicate. When it reaches 110 microns, the processed surface appears mirror-like luster, radiant and bright.
Particle grinding consists of the following processes:
(1) Rough grinding: The grinding tool is required to have a deep knife, high grinding efficiency, coarse grinding lines, and rough surface. It mainly removes the saw blade marks left by the product in the previous process and removes the product Flatness, the modeling surface is ground in place;
(2) Semi-fine grinding: remove the rough grinding traces to form new finer lines, and the product processing surface is smooth and smooth;
(3) Fine grinding: The pattern, particles and color of the product after fine grinding have been clearly displayed, the surface is fine and smooth, and there is a weak gloss;
(4) Fine grinding: The processed product has no traces of naked eyes. The surface is getting smoother and the gloss is about 40~50 degrees;
(5) Polishing: The surface is bright as a mirror, with a certain degree of mirror gloss (above 85 degrees).
2. Physical and chemical principles: There are two polishing processes, namely "dry polishing and wet polishing". When the polishing stone is between "dry and wet", when the stone product has physical and chemical effects, dry polishing is when the temperature of the stone surface The water evaporates and the concentration of the polishing grindstone increases, thereby achieving a strengthening effect. The gloss of the product begins to meet the ideal requirements, and the gloss is above 85 degrees or higher.
The polishing grindstone is polished on the processed product. After the polished product is hot, add water to the surface of the board to cool down. Continuous or large amounts of water are not allowed. Otherwise, the lubrication of water will make the polishing unable to reach For ideal results, dry polishing cannot be used at all. Excessive temperature will burn the surface and cause cracks on the surface.
Generally speaking, after fine grinding, the gloss of the product is about 40-50, and some stones cannot reach the above gloss after fine grinding, such as Shanxi black, black gold sand, Jining black, etc., such products are fine ground After the gloss is only between 20 and 30 degrees, it is not enough to explain the principle of the previous particle grinding. This product is in the polishing "dry and wet", the temperature rises, and the temperature is reduced. The polishing process is strengthened, and a physical and chemical reaction occurs. After the product undergoes "dry polishing and wet polishing", the gloss is gradually improved, and the gloss is above 85 degrees
Consistent Quality Control:
1. Raw material
have advanced device for diamond, powder ete inspection;
2. Finshed product
All produced product has been inspetion and approved before shipment.
3. Production
production procedure been strictly controlled by quality controlled department;
Any quality related problem that we are care and will solved for client.
Packaging & Shipping
Packge depends on the quanity and the product feature
1. By air
min. weight 35kgs; freight as per your airport
2. By Express
DHL, UPS, TNT etc. normally less than 35 kgs parcel, freight would be varousas per your country
3. By sea
can be Less than Container Load and Full Container Load; freight is according to the shiping company quoation to your seaport
Fast deliver time: 7- 15 days. To rough idea: most of order lead time is 7 days-10days.
EXHIBITION
Customer Oriented,Honest and Highly Responsible Team
SALES NETWORK
1、South Asia：India, Pakistan, Bengal, Sri lanka, etc2、South East Asia：Indonesia, Vietnam, Thailand3、Mid East：Iran, Saudi Arab, UAE, Syria, Lebanon, Israel etc
4、Africa：Egypt, Nigeria, Kenya, Ethiopia, South Africa5、America：USA, Canada, Mexico, Brazil, Venezuela, Chile, etc6、Oceania：Australia, New zealand
7、Europe：Ukraine, Poland, Bulgaria, Romania, Czech, Yugoslavia,Latvia,Lithuania,Sweden, Finland, Danmark, Spain, Greece, Turkey
Certification
Company Introduction
Manufacture and use of tools make human beings have the chances to get more natural resources and create a brilliant civilization.Wanlong has dedicated to stone cutting and stone application since 1993.Today, a daily average of 100,000 pieces of Wanlong diamond tools are exported around the world. Insisting on technological innovation, we continue to create more efficient and more cost-effective diamond tools. We have developed laminated stone panel.
