Make cutting easier!
Main feature:
1.High effective, environmental friendly, easy operation, long lifespan and no edge broken.
2.Hot press,cold press technology, silent core segment to prove high quality cutting result.
3.Diamond/steel power raw material.
4.High formula Key /U/Fishhook slot segment
5.4inch to 32inch segment offered.
6.Multi hole design by customer's requirements.
Product Description

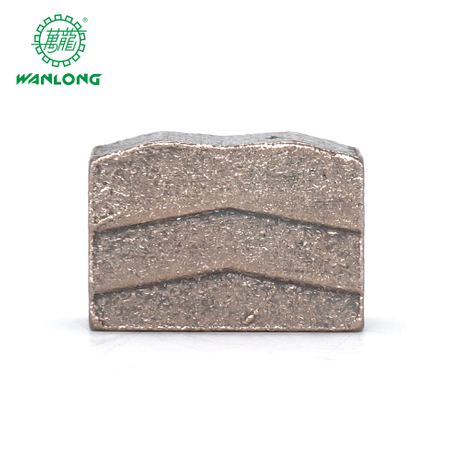

1、Edge Cutting Blade And Segment
Diameter(mm) | Steel core(mm) | No. |
300 | 2.2 | 21 |
350 | 2.2 | 24 |
400 | 2.6 | 29 |
450 | 3.0 | 32 |
1、 Ideal edge trimming quality with better blade continuity and narrower segment gap.
2. Better cutting sharpness and trimming efficiency.
3. Application: marble, granite, sandstone. Etc
Shape Options for marble.
Shape Options for granite.
Other specifications are available upon request.
Silent and non-silent blades are available for choice.
2、“FAN” Shape Edge Cutting Blade For Ceramic
Segment size(mm)
Diameter(mm) | Steel core(mm) | Segment size(mm) | No. |
300 | 1.8 | 41.3/38.8×2.4×10 | 23 |
350 | 2.2 | 42.7/40.3×3.0×10 | 26 |
1. Good continuity, effectively reduce the distance between teeth, cutting edgedoes not collapse.
2. The blade is good in sharpness and efficiency at the process of cutting.
3. Application: ceramic, microglass.
3、 Splitting Blade And Segment
Diameter(mm) | Steel core(mm) | Segment size(mm) | No. |
400 | 2.6 | 40×3.8×10 | 28 |
450 | 3.0 | 40×4.2×10 | 32 |
500 | 3.0 | 40×4.2×10 | 36 |
550 | 3.6 | 40×5.0×10 | 40 |
600 | 3.6 | 40×5.0×10 | 42 |
650 | 4.0 | 40×5.5×10 | 46 |
700 | 4.0 | 40×5.5×10 | 45/50 |
750 | 4.0 | 40×5.5×10 | 46/54 |
800 | 4.5 | 40×6.0×10 | 46/57 |
850 | 4.5 | 40×6.0×10 | 58 |
1. The blade is good in sharpness and efficiency at the processof cutting, meanwhile, it has a long lifespan.
2. Excellent comprehensive cutting performance.
3. Application: granite, marble.

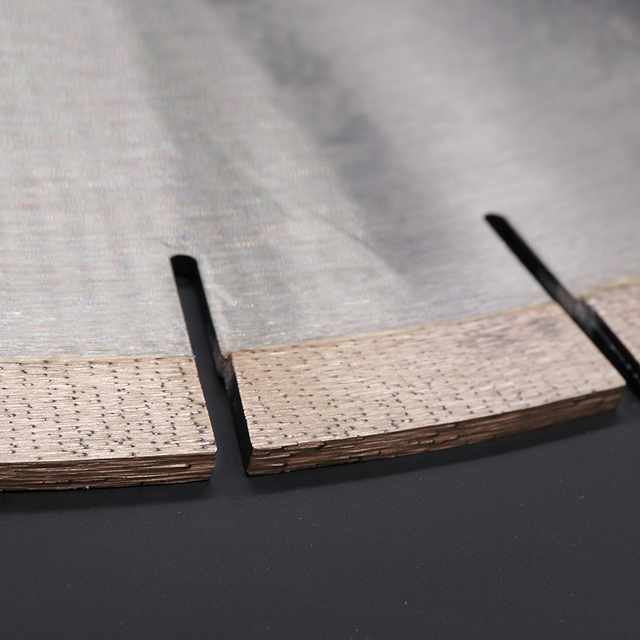

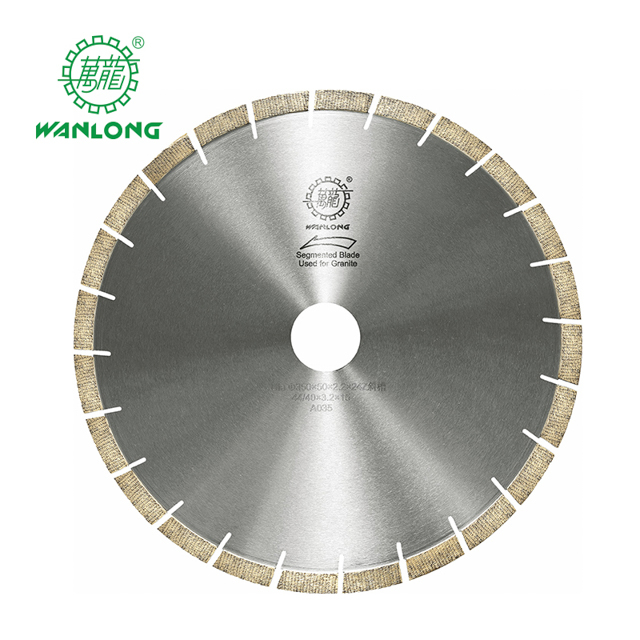

4、 Diamond Arrayed Cutting Blade And Segment
Diameter(mm) | Steel core(mm) | Segment size(mm) | No. |
300 | 2.2 | 43/40×3.2×12(15,20) | 21 |
350 | 2.2 | 43/40×3.2×12(15,20) | 24 |
400 | 2.6 | 43/40×3.6×12(15,20) | 29 |
450 | 3.0 | 43/40×4.2×12(15,20) | 32 |
1. Cutting efficiency improves 30% more, energy consumption reduces 30% more.
2. Good cutting result and fast cutting.
3. This type of blade can effectively reduce noise and protect the environment .
4. This product can be widely used on various power machines and environment .
5. Application: granite.
Shape Options
5、Horizontal Cutting Blade And Segment
Diameter(mm) | Steel core(mm) | Segment Size For Granite (mm) | Segment Size For Marble (mm) | No. |
350 | 7.5/3.0 | 40×4.4×10(15) | 40×4.6×10 | 21 |
400 | 7.5/3.0 | 40×4.4×10(15) | 40×4.6×10 | 24 |
450 | 7.5/3.0 | 40×4.4×10(15) | 40×4.6×10 | 26 |
500 | 7.5/3.5 | 40×5.0×10(15) | 40×5.5×10 | 30 |
550 | 4.0 | 40×6.0×10(15) | 40×6.0×10 | 32 |
600 | 4.0 | 40×6.0×10(15) | 40×6.0×10 | 36 |
650 | 4.0/4.5 | 40×6.0×10(15) | 40×6.0×10 | 40 |
1. The blade is good in sharpness and efficiency at the process of cutting,meanwhile, it has a long lifespan.
2. Excellent comprehensive cutting performance.
3. Application: granite, marble.
6、Laser Blade For Stone
Segment Dimension (mm)
SerialNumber | Diameter(mm) | Segment Dimension(mm) |
1 | 105 | 32×2.2×10(2) |
2 | 115 | 32×2.2×10(2) |
3 | 125 | 32×2.2×10(2) |
4 | 150 | 32×2.2×10(2) |
5 | 180 | 32×2.6×10(2) |
6 | 200 | 32×2.6×10(2) |
7 | 230 | 38×2.8×10(2) |
8 | 250 | 38×2.8×10(2) |
9 | 300 | 40×3.2×10(2) |
10 | 350 | 40×3.2×10(2) |
11 | 400 | 40×3.2×10(2) |
1. The blade is good in sharpness and efficiency at the process of cutting,meanwhile, it has a long lifespan.
2. Widely used for stone cutting.
7、Laser Blade For Concrete
SerialNumber | Diameter(mm) | Segment Dimension(mm) |
1 | 300 | 40×3.2×12(2) |
2 | 350 | 40×3.2×12(2) |
3 | 400 | 40×3.6×12(2) |
4 | 450 | 40×3.6×12(2) |
5 | 500 | 40×4.0×12(2) |
6 | 600 | 40×4.0×12(2) |
1. The blade is good in sharpness and efficiency at the process of cutting,meanwhile, it has a long lifespan.
2. Widely used for concrete cutting
Other specifications are available upon request.
8、Laser Blade For Asphalt
SerialNumber | Diameter(mm) | Segment Dimension(mm) |
1 | 300 | 40×3.2×12(2) |
2 | 350 | 40×3.2×12(2) |
3 | 400 | 40×3.6×12(2) |
4 | 450 | 40×3.6×12(2) |
5 | 500 | 40×4.0×12(2) |
6 | 600 | 40×4.0×12(2) |
1. The blade is good in sharpness and efficiency at the process of cutting,meanwhile, it has a long lifespan.
2. Widely used for asphalt cutting.
9、Continuous Rim Blade
SerialNumber | Segment Dimension(mm) | Born/mm |
105 | 1.8×8.0 | 16/20/22.23/25.4/50 |
110 | 1.8×8.0 | 16/20/22.23/25.4/50 |
115 | 1.8×8.0 | 16/20/22.23/25.4/50 |
125 | 2.0×8.0 | 16/20/22.23/25.4/50 |
150 | 2.2×8.0 | 16/20/22.23/25.4/50 |
180 | 2.4×8.0 | 16/20/22.23/25.4/50 |
200 | 2.6×8.0 | 16/20/22.23/25.4/50 |
230 | 2.8×8.0 | 16/20/22.23/25.4/50 |
1. Good continuity, good cutting sharpness and high cutting efficiency.
2. This product is widely used for cutting and nondestructive grooving on marble,granite, ceramic, tile, concrete, decorative material, used on manual cutting machine.
3. Suitable for wet cutting.
10、Dry Cutting Blade
Born/mm
Diameter(mm) | Segment Dimension(mm) | Born/mm | No. |
1051 | 1.8×8.0 | 16/20/22.23/25.4/50 | 8 |
115 | 1.8×8.0 | 16/20/22.23/25.4/50 | 9 |
125 | 1.8×8.0 | 16/20/22.23/25.4/50 | 10 |
150 | 2.2×8.0 | 16/20/22.23/25.4/50 | 12 |
180 | 2.2×8.0 | 16/20/22.23/25.4/50 | 14 |
200 | 2.6×8.0 | 16/20/22.23/25.4/50 | 16 |
230 | 2.6×8.0 | 16/20/22.23/25.4/50 | 16 |
1. Fast cutting speed and small cutting gap
2. High cutting efficiency and no chipping.
3. This product is widely used for cutting and nondestructive grooving on marble,granite, ceramic tile, concrete, decorative material, used on manual cutting machine.
11、Teeth-protection Blade
Diameter(mm) | Segment size(mm) | Core | Long Segment Number Short Segment Number |
105 | 1.8×8.0 | 16/20/22.23/25.4/50 | 9(3+6) |
115 | 1.8×10.0 | 16/20/22.23/25.4/50 | 9(3+6) |
125 | 2.0×10.0 | 16/20/22.23/25.4/50 | 9(3+6) |
150 | 2.2×10.0 | 16/20/22.23/25.4/50 | 12(4+8) |
180 | 2.4×10.0 | 16/20/22.23/25.4/50 | 15(5+10) |
230 | 2.8×10.0 | 16/20/22.23/25.4/50 | 21(7+14) |
1. Fast cutting speed and small cutting gap.
2. High cutting efficiency and no chipping.
3.This product is widely used for cutting and nondestructive grooving on marble, granite, ceramic tile, concrete, decorative material, used on manual cutting machine.
12、Turbo Blade
Diameter(mm) | Segment Dimension(mm) | Born/mm |
105 | 1.8×8.0 | 16/20/22.23/25.4/50 |
115 | 1.8×10.0 | 16/20/22.23/25.4/50 |
125 | 2.0×10.0 | 16/20/22.23/25.4/50 |
150 | 2.3×10.0 | 16/20/22.23/25.4/50 |
180 | 2.5×10.0 | 16/20/22.23/25.4/50 |
200 | 2.6×8.0 | 16/20/22.23/25.4/50 |
230 | 2.6×10.0 | 16/20/22.23/25.4/50 |
1.Fast cutting speed and small cutting gap and high cutting efficiency.
2.This product is widely used for cutting and nondestructive grooving on marble, Granite, ceramic tile,concrete, decorative material, used on manual cutting machine.
3.Suitable for dry/wet cutting.
Professional Technology
Details Determine Success Or Failure
Field Operation
Details Determine Success Or Failure
Consistent Quality Control:
1. Raw material
have advanced device for diamond, powder ete inspection;
2. Finshed product
All produced product has been inspetion and approved before shipment.
3. Production
production procedure been strictly controlled by quality controlled department;
Any quality related problem that we are care and will solved for client.
Packaging & Shipping
Packge depends on the quanity and the product feature
1. By air
min. weight 35kgs; freight as per your airport
2. By Express
DHL, UPS, TNT etc. normally less than 35 kgs parcel, freight would be varousas per your country
3. By sea
can be Less than Container Load and Full Container Load; freight is according to the shiping company quoation to your seaport
Fast deliver time: 7- 15 days. To rough idea: most of order lead time is 7 days-10days.
EXHIBITION
Customer Oriented,Honest and Highly Responsible Team
SALES NETWORK
1、South Asia：India, Pakistan, Bengal, Sri lanka, etc2、South East Asia：Indonesia, Vietnam, Thailand3、Mid East：Iran, Saudi Arab, UAE, Syria, Lebanon, Israel etc
4、Africa：Egypt, Nigeria, Kenya, Ethiopia, South Africa5、America：USA, Canada, Mexico, Brazil, Venezuela, Chile, etc6、Oceania：Australia, New zealand
7、Europe：Ukraine, Poland, Bulgaria, Romania, Czech, Yugoslavia,Latvia,Lithuania,Sweden, Finland, Danmark, Spain, Greece, Turkey
